"We design solenoids
to meet your exact
needs or we will
modify our standard products to your requirements."
Peter Runton
President
Runton Engineering, Inc.
27 Maple Avenue,
Holbrook MA 02343
Phone 781-767-0062
Fax 781-767-0064
|
|
Your Leader for Actuators, Solenoids, Coils, and Replacement Parts
|
| |
BRUIT FORCESM
Industrial Solenoids
F-300
General Purpose Solenoids
G-200 GE Replacement Types

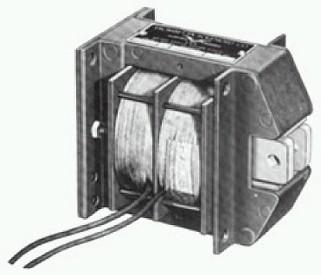

Large Laminated
Solenoids
• Strokes to 3-1/2" • Force to 60 lbs. at maximum stroke • AC or
DC operation • All class H insulation
• Repair of used solenoids a specialty
Selection and Engineering Table
| Model-200* |
Model F-300 |
Max. stroke in inches |
Pull in lb. Continuous Duty |
AC Current 220 Volt 60 Hz |
DC Current 220 Volt |
Solenoid Plunger Weight |
Shipping Weight |
| at Max Stroke |
at Max Stroke |
Seated |
Inrush (Unseated) |
** Seated |
| 85% |
100% |
| G-209 |
F-323 |
1.25 |
3.0 |
4.2 |
3.2 |
0.5 |
1.7 |
.02 |
.25 |
2.3 |
| G-209M |
F-324 |
1.25 |
5.0 |
7.0 |
5.2 |
0.5 |
3.0 |
.02 |
.44 |
3.0 |
| G-210 |
F-325 |
1.50 |
7.0 |
9.5 |
8.2 |
1.1 |
3.0 |
.03 |
.56 |
4.5 |
| G-211 |
F-326 |
1.50 |
10.0 |
14.0 |
11.2 |
1.2 |
3.2 |
.03 |
.88 |
6.6 |
| - |
F-327 |
1.50 |
16.0 |
22.0 |
16.2 |
1.4 |
3.4 |
.03 |
1.30 |
8.0 |
| - |
F-328 |
2.50 |
18.0 |
25.2 |
33.5 |
2.3 |
3.6 |
.04 |
2.19 |
14.0 |
| G-206 |
- |
2.00 |
22.7 |
31.6 |
30.0 |
2.3 |
3.6 |
.04 |
2.30 |
13.5 |
| - |
F-329 |
2.50 |
25.0 |
35.0 |
39.0 |
2.0 |
4.0 |
.04 |
3.19 |
17.0 |
| - |
F-330 |
3.50 |
35.0 |
49.0 |
68.0 |
4.2 |
4.3 |
.05 |
4.50 |
31.0 |
| - |
F-331 |
3.50 |
45.0 |
63.0 |
94.0 |
5.3 |
5.5 |
.06 |
6.00 |
33.0 |
|

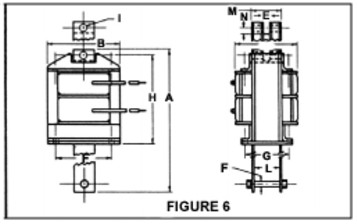

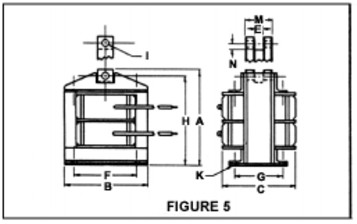

Dimension
Table
Model
G-200* |
Model
F-300 |
opera-
tion |
Fig. |
Overall
Dimensions |
|
Mounting
Holes |
H |
I |
J |
K |
L |
M |
N |
P |
|
A |
B |
C |
E |
F |
G |
|
G-209 |
F-323 |
Pull
Push |
5
6 |
3-15/32
5-19/32 |
2-5/8 |
2-3/8 |
17/64 |
2-1/4 |
1-7/16 |
3-1/4 |
1/4 |
-
5-3/32 |
13/64 |
-
43/64 |
41/64
49/64 |
5/16 |
-
3/8 |
|
G-209M |
F-324 |
Pull
Push |
5
6 |
3-15/32
5-19/32 |
2-5/8 |
2-3/8
2-3/4 |
17/64 |
2-1/4 |
1-7/8 |
3-1/4 |
1/4 |
-
5-3/32 |
13/64 |
-
3/32 |
1-1/16
1-7/32 |
5/16 |
-
3/8 |
|
G-210 |
F-325 |
Pull
Push |
5
6 |
4-1/2
7-1/8 |
2-5/8 |
3
3-3/16 |
17/64 |
3-1/8 |
1-13/16 |
4-3/16 |
5/16 |
-
6-1/2 |
-
9-/32 |
-
3/4 |
23/32
57/64 |
27/64 |
-
7/16 |
|
G-211 |
F-326 |
Pull
Push |
5
6 |
4-1/2
7-1/8 |
3-11/16 |
3-1/4 |
29/64 |
3-1/8 |
2-1/4 |
4-3/16 |
5/16 |
-
6-1/2 |
-
9-/32 |
-
3/16 |
1-5/32
1-11/32 |
27/64 |
-
7/16 |
|
- |
F-327 |
Pull
Push |
5
6 |
4-1/2
7-1/8 |
3-11/16 |
3-11/16
3-3/16 |
37/64 |
3-1/8 |
2-1/4 |
4-3/16 |
5/16 |
-
6-1/2 |
-
9-/32 |
-
1-21/32 |
1-5/8
1-13/16 |
27/64 |
-
7/16 |
|
- |
F-328 |
Pull
Push |
5
6 |
5-61/64
9-9/16 |
4-3/4 |
4-3/32
4-1/4 |
37/64 |
4 |
2-3/4 |
5-37/64 |
25/64 |
-
8-11/16 |
11/32 |
-
1-19/32 |
1-35/64
1-25/32 |
7/16 |
-
1/2 |
|
G-206 |
- |
Pull
Push |
5
6 |
5-61/64
8-9/16 |
4-3/4 |
4-1/4 |
37/64 |
4 |
2-13/16 |
5-37/64 |
25/64 |
-
8-3/16 |
11/32 |
-
1-19/32 |
1-35/64
1-25/32 |
7/16 |
-
1/2 |
|
- |
F-329 |
Pull
Push |
5
6 |
5-61/64
9-9/16 |
4-3/4 |
4-3/4
5 |
37/64 |
4 |
3-1/2 |
5-37/64 |
25/64 |
-
8-11/16 |
11/32 |
-
2-19/64 |
2-15/64
2-15/32 |
7/16 |
-
1/2 |
|
- |
F-330 |
Pull
Push |
5
6 |
7-29/32
12-17/32 |
6-1/8 |
4-15/16
5-7/32 |
25/32 |
5-1/4 |
3-3/4 |
7-13/32 |
1/2 |
-
11-17/32 |
-
25/64 |
-
2 |
1-29/32
2-1/4 |
9/16 |
-
1/2 |
|
- |
F-331 |
Pull
Push |
5
6 |
7-29/32
12-17/32 |
6-1/8 |
5-1/2
5-3/4 |
25/32 |
5-1/4 |
4-5/8 |
7-13/32 |
1/2 |
-
11-17/32 |
-
25/64 |
-
2-9/16 |
2-15/32
2-13/16 |
9/16 |
-
1/2 |

F 300

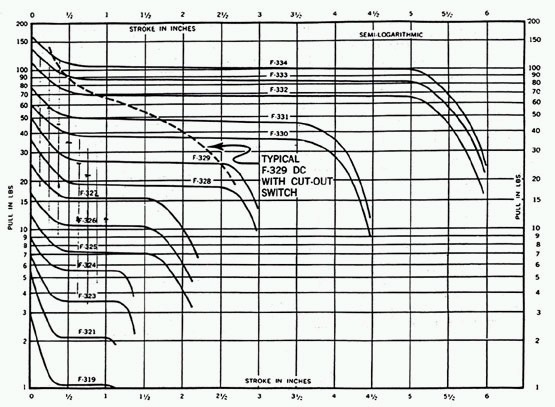

Standard Pull Curves - 85 % Voltage
|
|
